TMAX Flexible Shaft Replacement for Grinder 3148 Drill Bit Extension Drill Drive Shaft Flexible Flex Shaft Extension Cord Rotary Tool for Drilling Grinding Polishing
The shaft match TMAX grinder SKU 3148. Handle is listed as a separate replacement items.
To remove the broken shaft: First pull out existing handle from the broken shaft. The handle is secured with spring load metal ball. Unscrew the shaft connector clockwise from the grinder ( Note that it is reverse threaded). Pull down the metal shaft outer shield to expose steel inner core. Unscrew the inner core from the grinder using included L bar.
To install the replacement shaft: Pull out steel inner core. Secure the inner core to the grinder with the included L shape bar wrench. Screw the shaft connector counter closewise to the grinder. Slide the end of inner core into the groove inside the handle. Push handle back to the shaft.

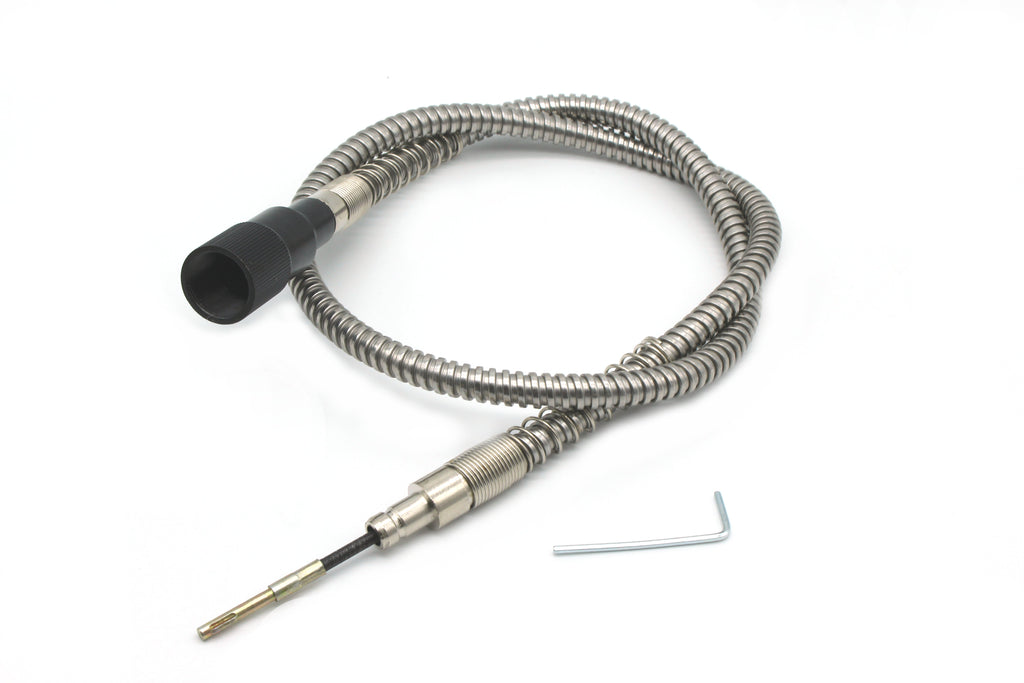

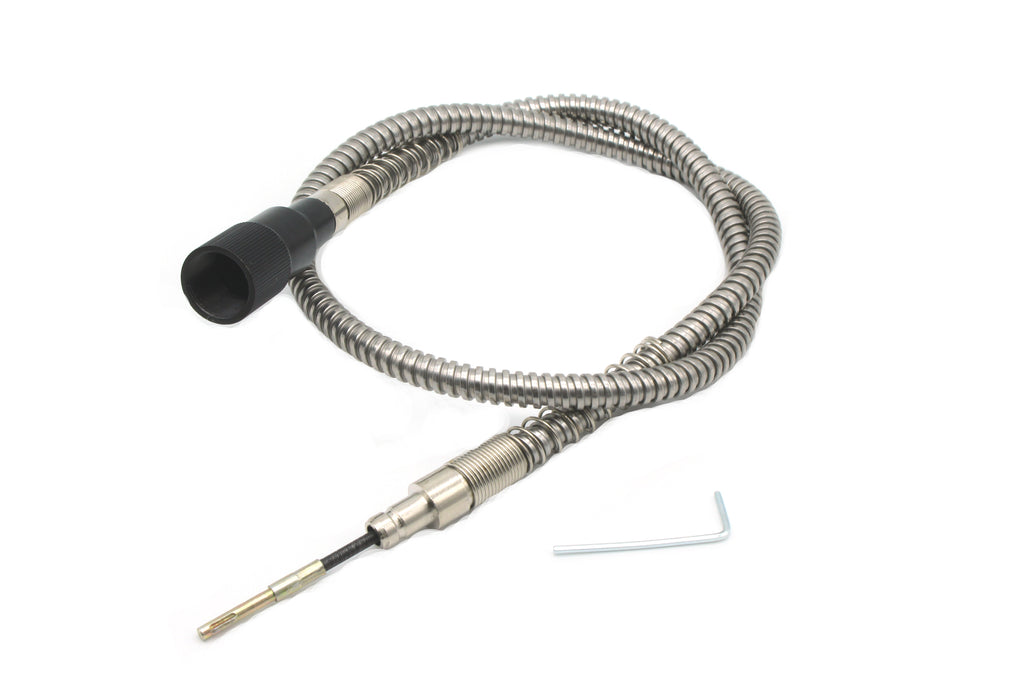

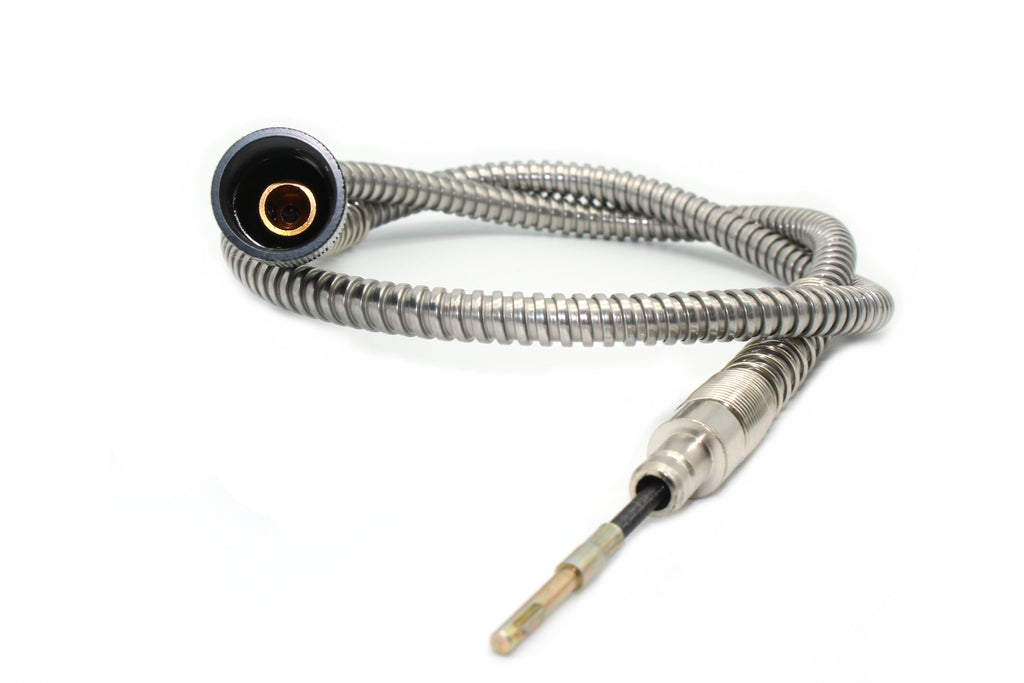

The shaft is 3 feet (1 meter) long with heavy duty metal outer shield.
